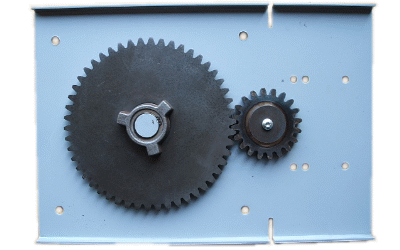

齒式格板規格
|
產品編號 |
規格 |
板厚 |
尺寸(寬) |
尺寸(長) |
傳動齒輪 |
重量 |
|
G510 |
1.0尺 |
4.0mm |
303mm |
500mm |
M550T/20T |
18kg |
|
G511 |
1.1尺 |
4.0mm |
334mm |
515mm |
M550T/20T |
19kg |
|
G512 |
1.2尺 |
4.0mm |
364mm |
530mm |
M550T/20T |
20kg |
|
G513 |
1.3尺 |
4.0mm |
394mm |
545mm |
M550T/20T | 21kg |
|
G514 |
1.4尺 |
4.5mm |
425mm |
560mm |
M550T/20T | 24kg |
|
G515 |
1.5尺 |
4.5mm |
455mm |
575mm |
M550T/20T | 26kg |
|
